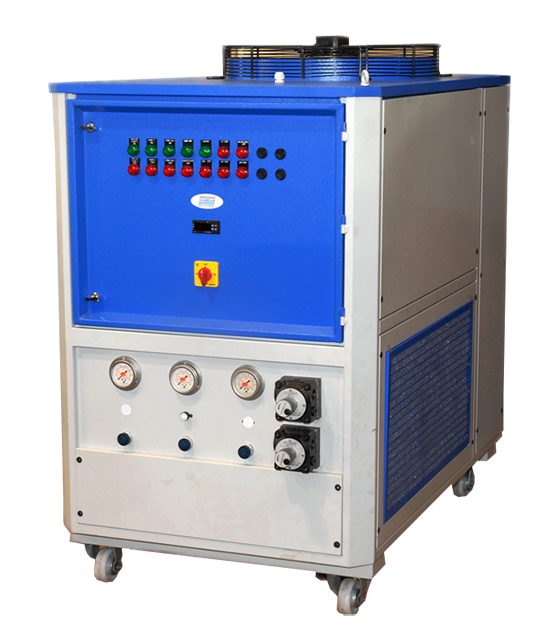

Oil Chillers

Introduction

Oil Chillers are designed for continuous trouble free operation in hostile industrial environment.

SUNBEAM OIL CHILLERS are used to cool the following oils :
  • COOLANT OIL
    Coolant Oil Chillers are used to maintain temperature of coolants, thereby maintaining the surface finish and accuracy of the component to be machined.
  • HYDRAULIC OIL
    Hydraulic Oil Chillers maintain the temperature of hydraulic oil and thereby its viscosity for smooth working of machine tools.
  • SPINDLE OIL
    Spindle Oil Chillers are used to maintain temperature of spindle oil which prevents the deformation of spindle, resulting in better surface finish and accuracy of components.
  • CUTTING OIL
    Cutting Oil Chillers are used to maintain temperature of cutting oil, which improves the life of the tool and provides better surface finish and accuracy of the components.


 Choice of Evaporators
  • CLEANABLE LASER WELDED PLATE HEAT EXCHANGERS :
    One side gasket & laser Welded at refrigerant side.
  • BRAZED PLATE EVAPORATOR :
    Brazed Plate Evaporator is very compact and very efficient, due to which size and weight of the oil chiller reduces.
  • DIP IN TYPE WITH STAINLESS STEEL TUBE :
    Here the evaporator made up of stainless steel tube is directly immersed in the tank of oil to be cooled. Stainless steel tube of evaporator provides better life against corrosion and erosion.
  • CLEANABLE SHELL AND STAINLESS TUBE TYPE EVAPORATOR :
    Evaporator is compact size & applicable for cutting oil. the shell can be removed to clean evaporator coil.


Choice of Condensers
   SUNBEAM OIL CHILLERS are available with following types of Condensers :
  • AIR COOLED :
    This is made up of aluminum fins, with inner groove copper tubes.
  • WATER COOLED :
    SUNBEAM uses tube-in-tube type of water cooled condensers. This is used when ambient temperature is in the range of 55° C . or more or when the environment is very dusty and corrosive.



 Features
  • Body is made up of Galvanized steel.
  • Powder coated / Polyurethane paint.
  • Machine capable of withstanding high ambient temperature and hostile air.
  • Digital temperature controller displays the temperature of oil and provides high temperature alarm.
  • Facility to maintain oil temperature, with respect to ambient temperature, is available on demand.
  • Units with energy efficient scroll compressors are available on request.
  • 100% Functionally tested.
  • Custom built machine enquiries are also entertained.
  • HP / LP switches for safety of compressors.



Quality Control

All components are thoroughly tested and inspected before assembly and due importance is given to internal cleanliness of Evaporators, Condensers, Copper Tubes, etc. All machines are tested on specially designed Test Rig at low and full load before despatch.




  Capacity Range
  •  FROM - 580 Watts to 1,05,000 Watts
  •  or 500 Kcal/hr to 90,000 Kcal/hr
  •  or 2000 BTU/hr to 3,60,000 BTU/hr
